Description
The LED strip is an extendable RGB (Red, Green, Blue) light, with each LED being individually addressable and able to individually display colour and brightness.
The LED strip has connectors that enables you to connect multiple strips together creating a long LED strip. It is however important to note that, the brightness and the quantity of LEDs will impact the power consumption, so if you have multiple LED strips connected, you will need an extra power supply.

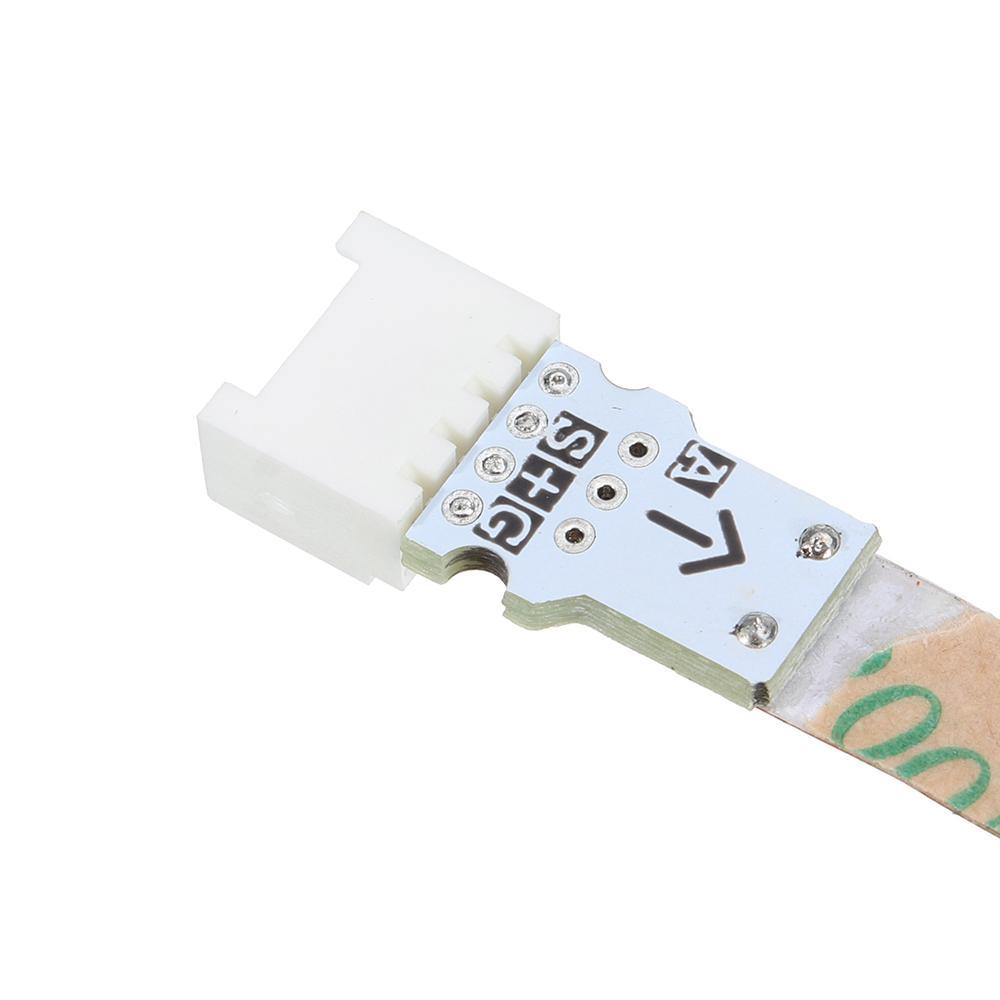

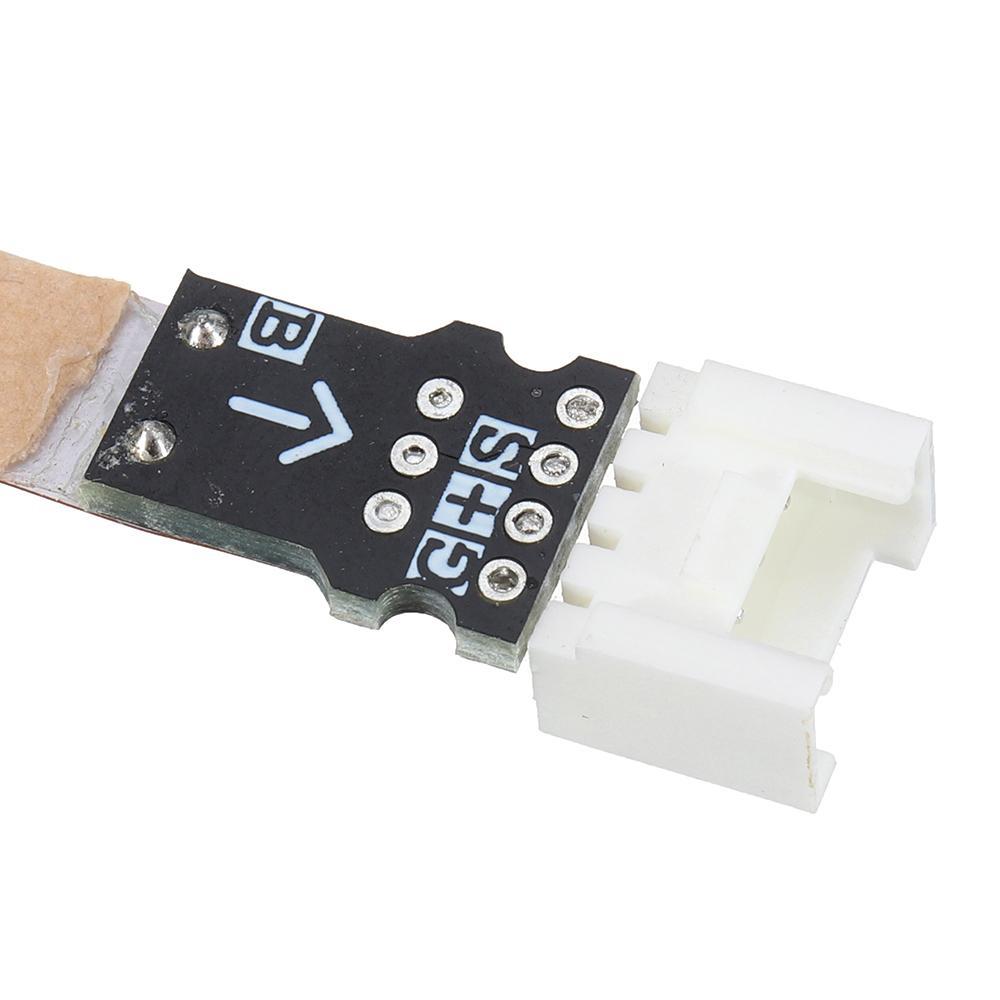

Remember: The black PCB side at the end of the LED strip is there to connect the LED strip to the CanDo Cube while the white PCB side is used to extend the light bar. We have included these images in the gallery to explain this better.
Product Features
- Length: 10cm(15 LED)
- Extendable
Include
- 1x 10cm 15 LED RGB LED strip
Specification
| Resources | Parameter |
| Lamp bead model | SK6812 |
| Working voltage | 5V |
| Power | 18W/m |
| Data transfer rate | 800K/s |
| Working temperature | -40°C-80°C |
| Waterproof rating | Bare board-not waterproof |
| Net weight | 4g |
| Gross weight | 5g |
| Product Size | 10*100mm |
| Package Size | 165*10*3mm |
