Description

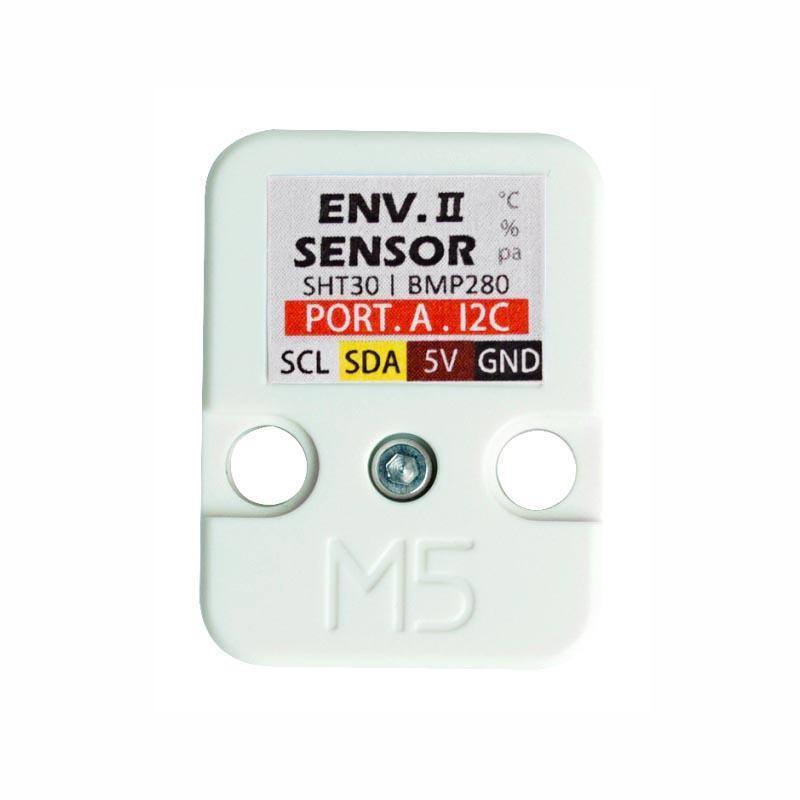

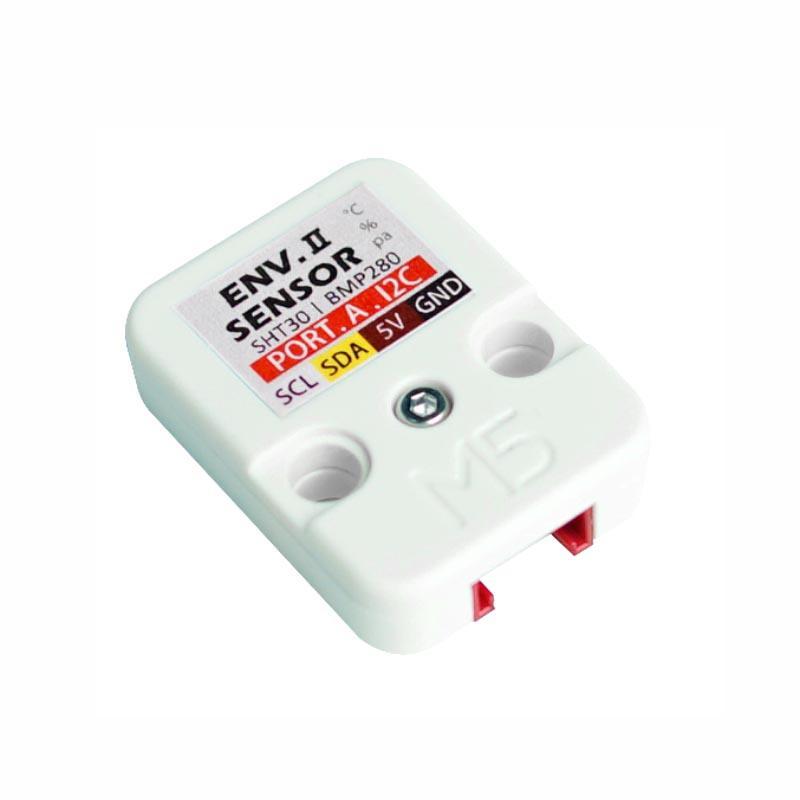

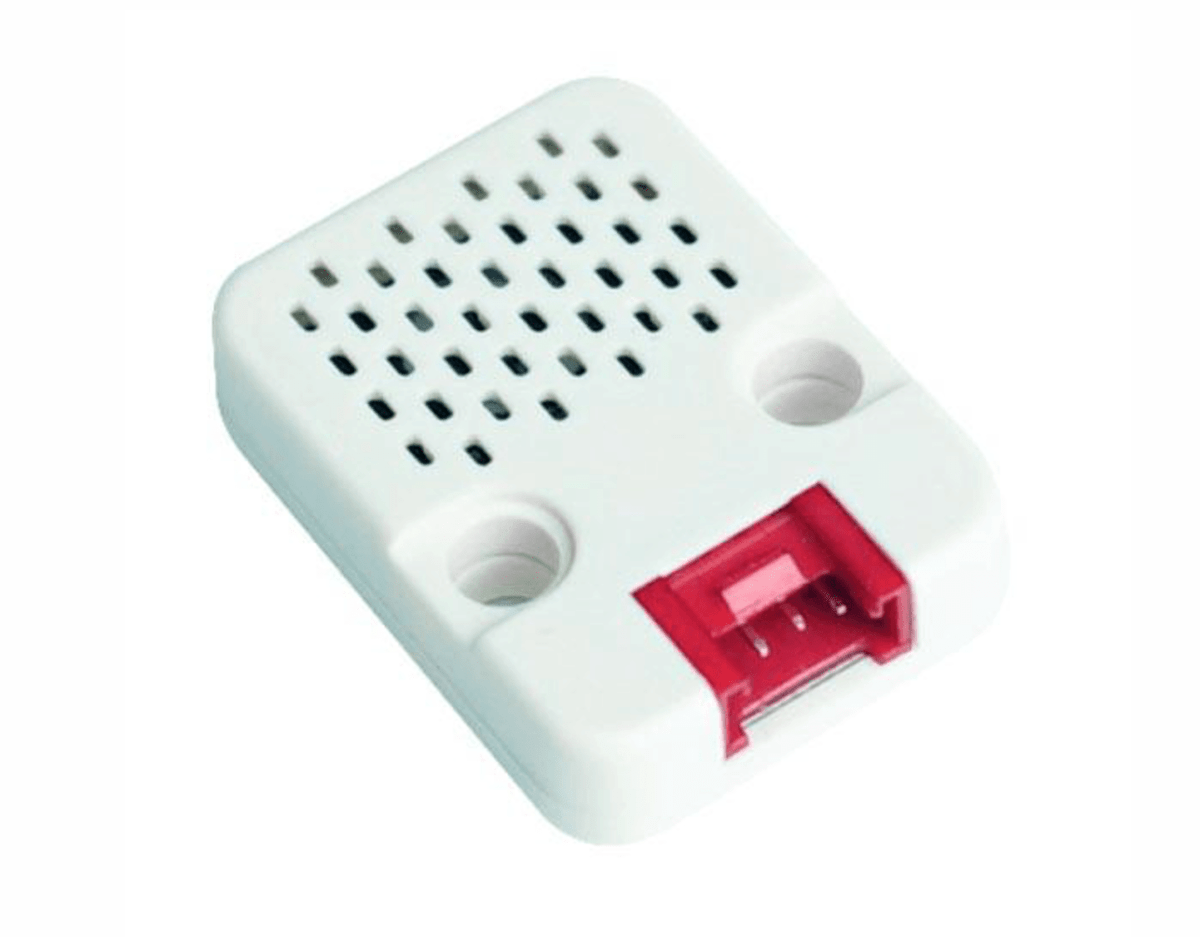

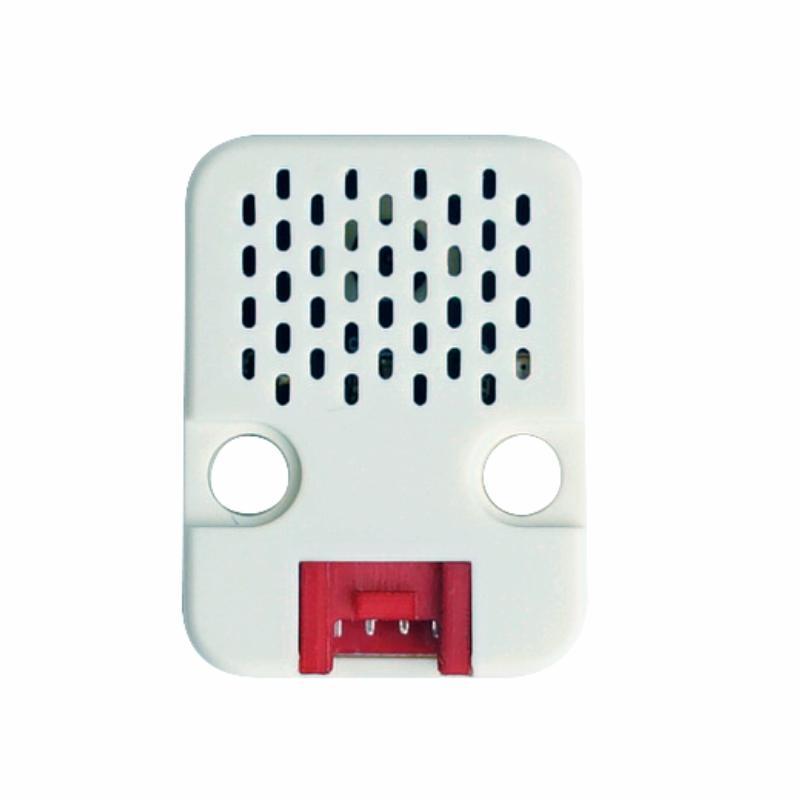

The environmental sensor can sense temperature, humidity and atmospheric pressure. It integrates the SHT30 and BMP280 sensors and is programmed over the I2C protocol(SHT30:0x44, BMP280:0x76).
SHT30 is a digital temperature and humidity sensor with high precision and low power consumption.
BMP280 is an absolute barometric pressure sensor which is especially designed for mobile applications. It offers the highest flexibility to optimize the device regarding power consumption, resolution and filter performance.
Product Features
- High-precision
- Support I2C
- GROVE interface
- Two Lego installation holes
Includes

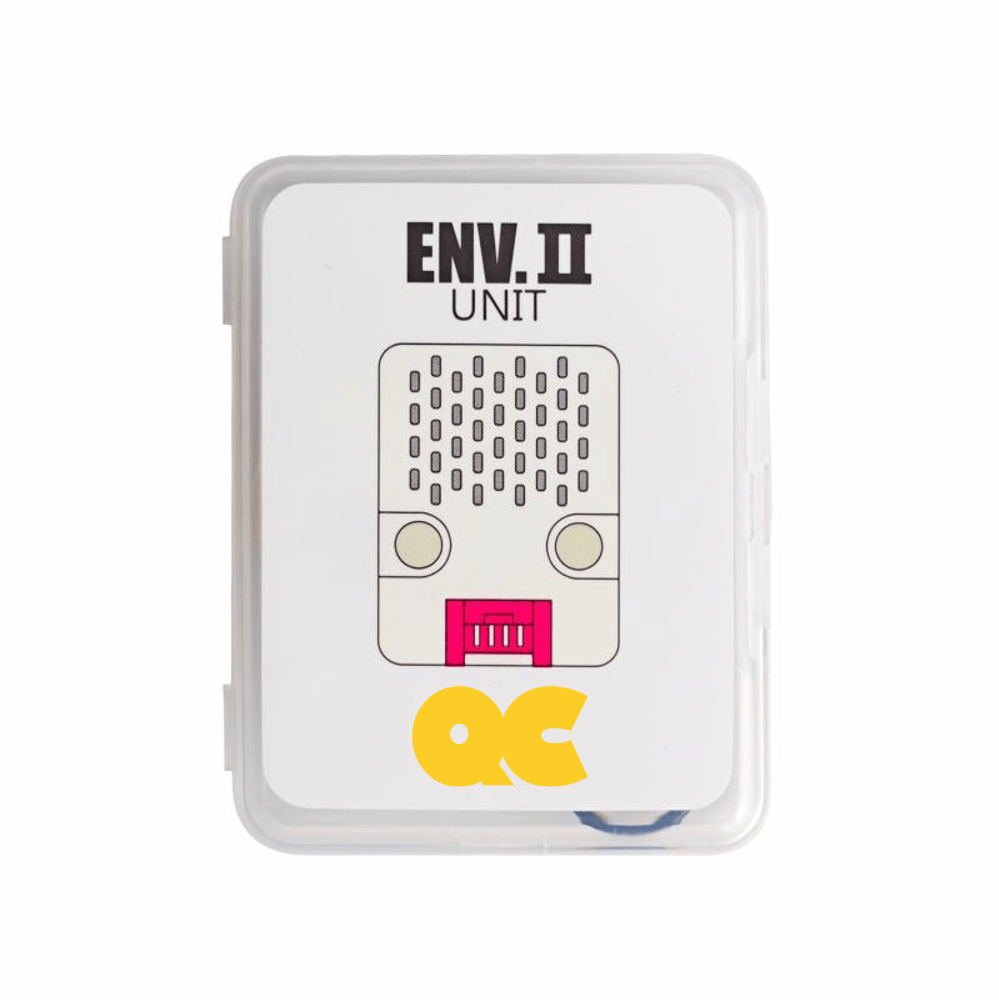

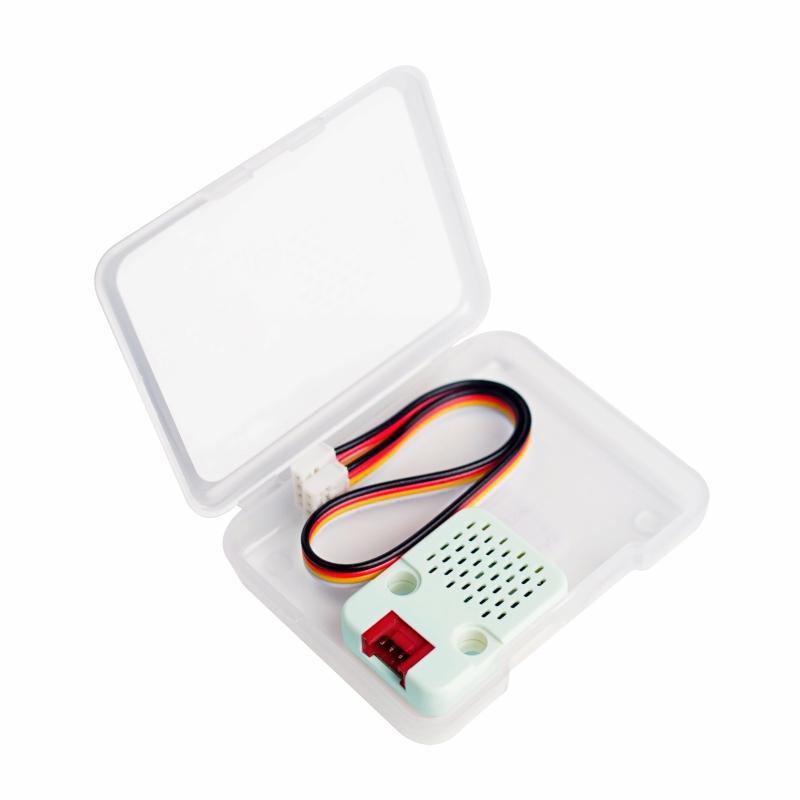

- 1x ENV II Unit
- 1x Grove Cable
Specification
| Specification | Parameter |
| Max temperature measuring range | -40 ~ 120 ℃ |
| Typical temperature tolerance | 0 ~ 60 ℃/±0.2℃ |
| Humidity measuring range | 10 ~ 90 %RH / ±2% |
| Air pressure measuring range | 300 ~ 1100hPa / ±1hPa |
| Communication protocol | I2C：SHT30(0x44),BMP280(0x76) |
| Operating temperature range | 0°C to 40°C |
| Net weight | 5g |
| Gross weight | 17g |
