Description
The Distance sensor that employs time-of-flight techniques to determine the distance between the emit point and the reach point of a subject, measuring the round trip time of an artificial light signal provided by a laser.
This unit integrated a distance measuring sensor VL53L0x providing accurate distance measurement whatever the target reflectance, unlike conventional technologies. It can measure absolute distances up to 2m in less than 30ms.
This unit communicates with CanDo Cube range through I2C(0x29).
- In this case, make sure you use the 3.3V on SDA and SCL, CanDo Cube GROVE provide 3.3V to data pins, 5V to power pin. only 3.3v allowed on VL53L0x.
Product Features
- High precision
- Measure absolute distances up to 2m
- Measurement accuracy ±3%
- The wavelength of laser: 940nm
- Program Platform: Arduino, UIFlow(Blockly, Python)
- Two Lego-compatible holes
Include

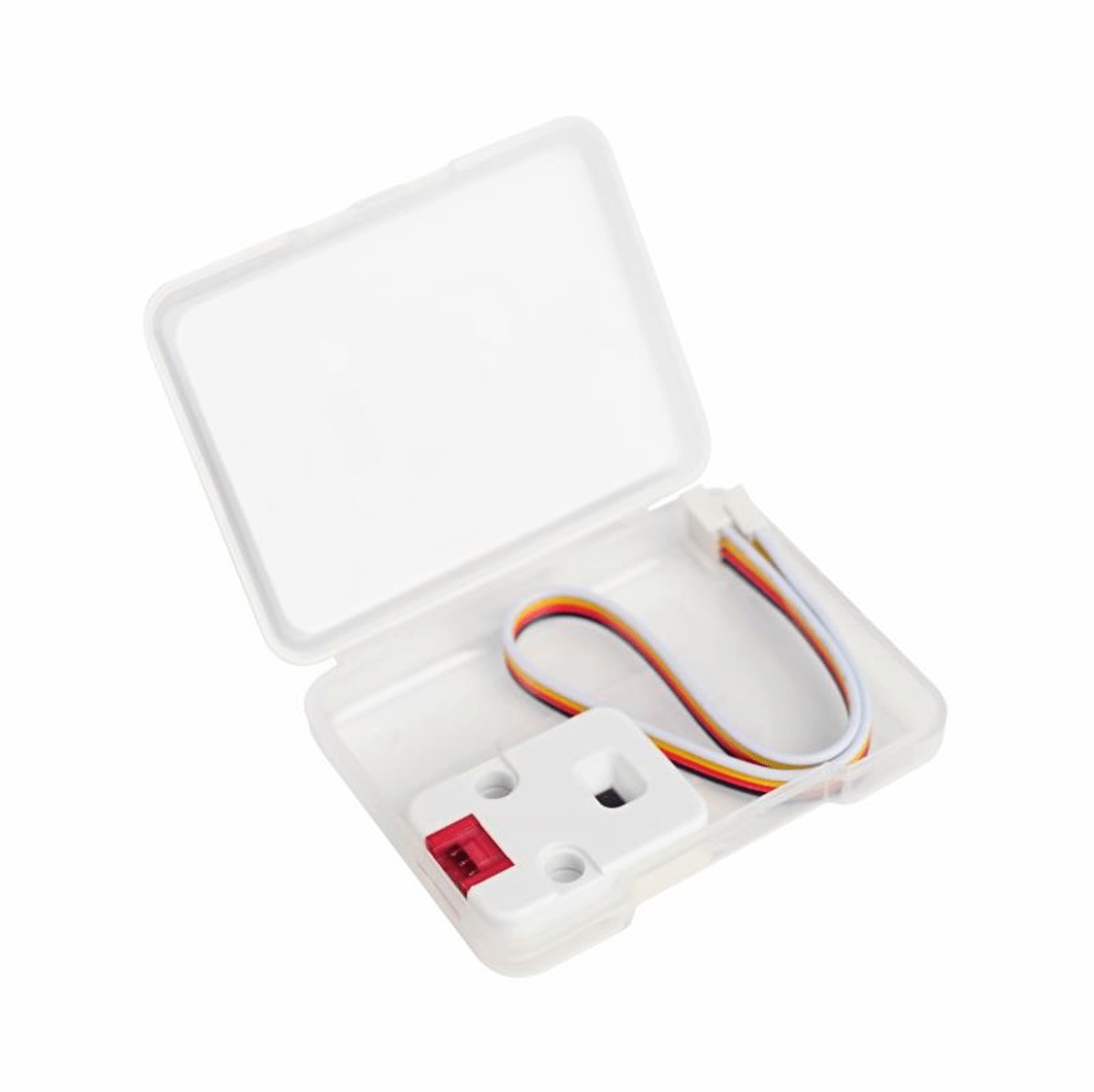

- 1x ToF Distance Sensor Unit
- 1x Grove Cable
Applications
- 1D gesture recognition
- Laser Ranging
- 3D structured light imaging（3D sensing）
- Camera assist (ultra fast autofocus and depth of field)
For all questions or issue regarding this device, please visit our forums under the Connect menu option.
Specification
| Metric | Parameter |
| Measuring distance | 0.3-2m |
| Measurement accuracy | ±3% |
| Net weight | 4g |
| Gross weight | 17g |
| Product Size | 32*24*8mm |
| Package Size | 67*53*12mm |
